Description
About:

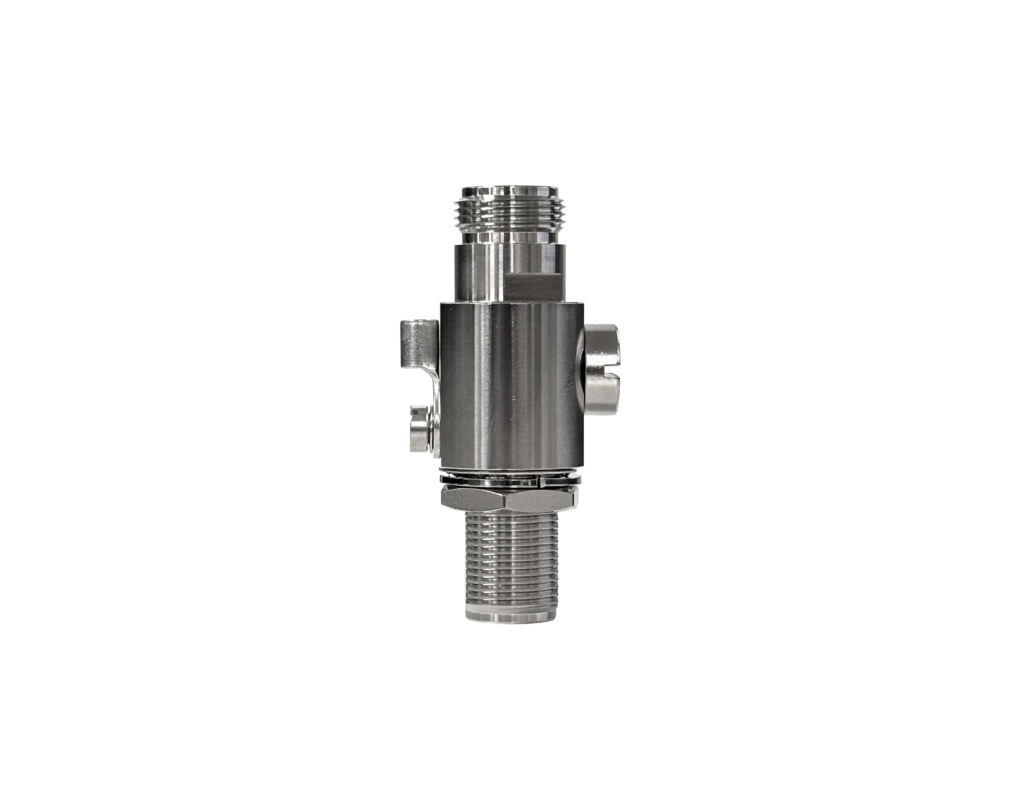

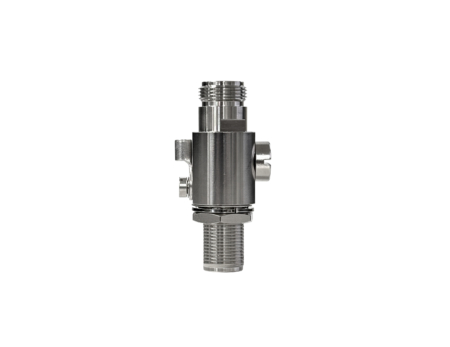

N-Female to N-Female Lightning Protection
Reliable wide-band performance (6 GHz), 50 ohm coax lightning arrestor, bi-directional protection and can be used indoor or outdoor. Replaceable 90v gas discharge tube with multi-strike capability shunts damaging surges, transients, and lightning strikes to ground.
Materials & Plating Specifications:
| MODEL | 850050 |
| SHELL/BODY | Brass/Nickel Surface Plating |
| CONTACT | Phosphor Bronze/Bronze & Gold Surface Plating |
| INSULATOR | PTFE |
| NUT | Brass/Nickel Surface Plating |
| SPRING CONTACT | Phosphor Bronze/Nickel Surface Plating |
| GAS DISCHARGE TUBE | 90V±20%/230V±20% |
Electrical Specifications:
| IMPEDANCE | 50Ω |
| MAX FEQUENCY | DC-5.8 GHz |
| DIELECTRIC WITHSTANDING VOLTAGE | 2500V (RMS) |
| CONTACT RESISTANCE | Center conductor ≤1mΩ Outer conductor ≤ 1mΩ |
| NUT | Brass/Nickel Surface Plating |
| INSULATION RESISTANCE | ≥5000MΩ |
| MATING | 5/8”-24UNEF-2A |
| DURABILITY | ≥ 500 cycles |
| TEMPERATURE RANGE | – 40°C to +85 °C |
