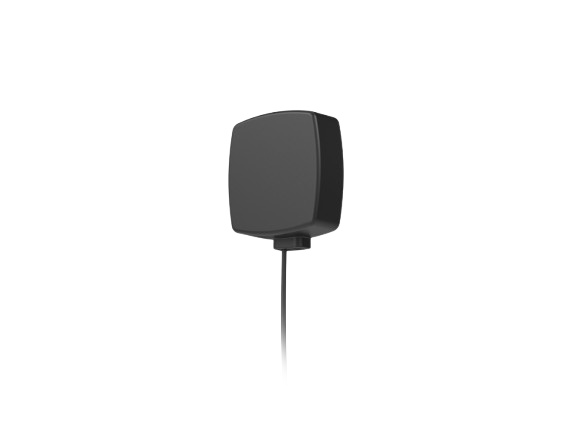

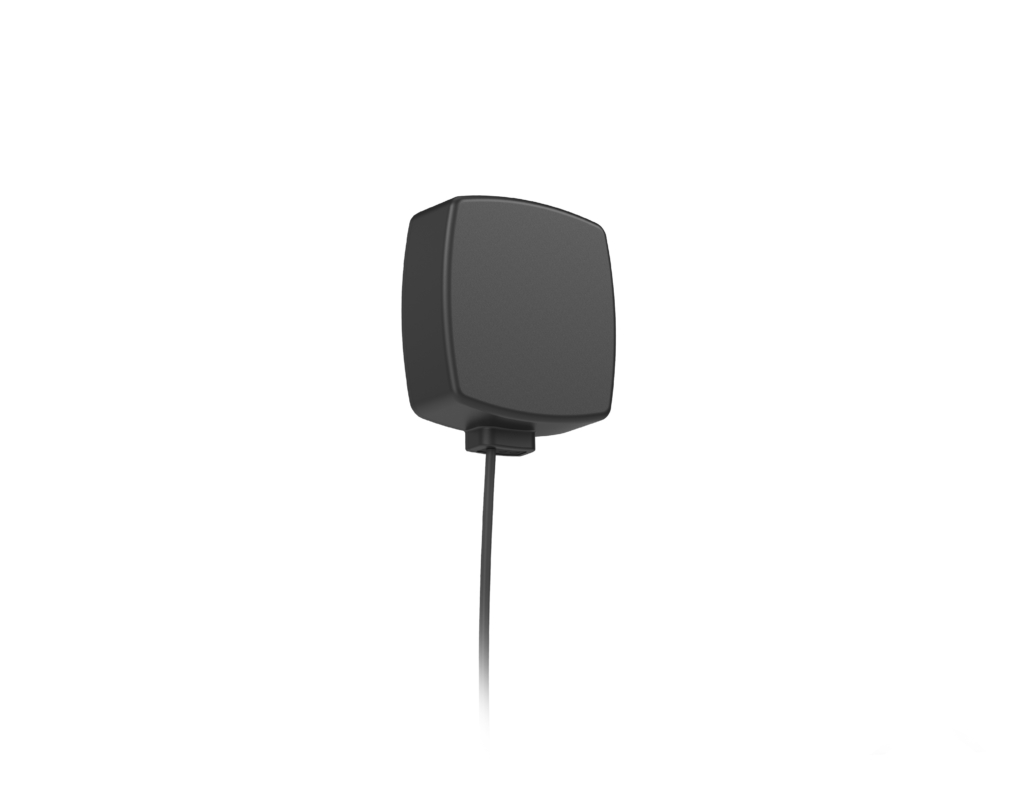

Description
Features:
- Multi-band Support: Covers 5G, 4G, 3G, and 2G across 617-5925 MHz.
- High Gain: Delivers strong performance with peak gain across wide frequencies.
- Ground Plane Independent: Works efficiently without a ground plane.
- Durable: IP67/IP69 rated for dust and water resistance.

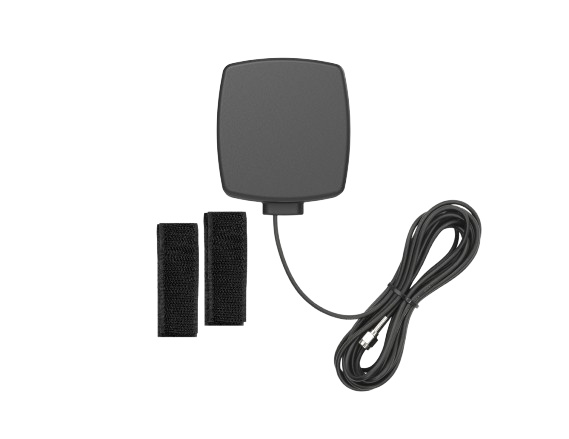

- Compact: Low-profile design (89 × 76 × 30 mm) with Velcro mount.
- High-performance Cable:10 ft. DACAR-302 cable with SMA male connector.
- Wide Temperature Range: Operates from -40°C to +85°C.
- Omni-directional: Provides 360° signal reception.
Electrical Specifications:
| FREQUENCY BAND (MHZ) | 617-960 | 1427-2690 | 3300-5000 | 5150-5925 |
| RETURN LOSS (DB) | ~-7.0 | ~-11.2 | ~-7.1 | ~-6.4 |
| VSWR | ~3.1:1 | ~2.1:1 | ~3.1:1 | ~3.0:1 |
| EFFICIENCY (%) | ~50.2 | ~56.3 | ~30.4 | ~25.1 |
| PEAK GAIN (dBi) | ~2.1 | ~6.3 | ~3.7 | ~2.8 |
| AVERAGE PEAK GAIN (dBi) | ~-3.3 | ~-2.5 | ~-5.8 | ~-6.1 |
| IMPEDANCE | 50 Ohm |
| POLARIZATION | Linear |
| RADIATION PATTERN | Omni-Directional |
| MAX POWER | 35w |
| CABLE TYPE | SMA-Male |
| CABLE LENGTH (ft./m) | 10 / 3 |
Mechanical Specifications:
| MODEL | 310004† |
| DIMENSIONS (in/ mm) | 3.5×3×1 / 89×76×30 |
| RADOME TYPE | ASA UV Stable |
| RADOME COLOR | Black, White |
| OPERATING TEMPERATURE (F°/°C) | -40 to +185 / -40 to +85 |
| SUBSTANCE COMPLIANCE | RoHS |
