ABOUT:

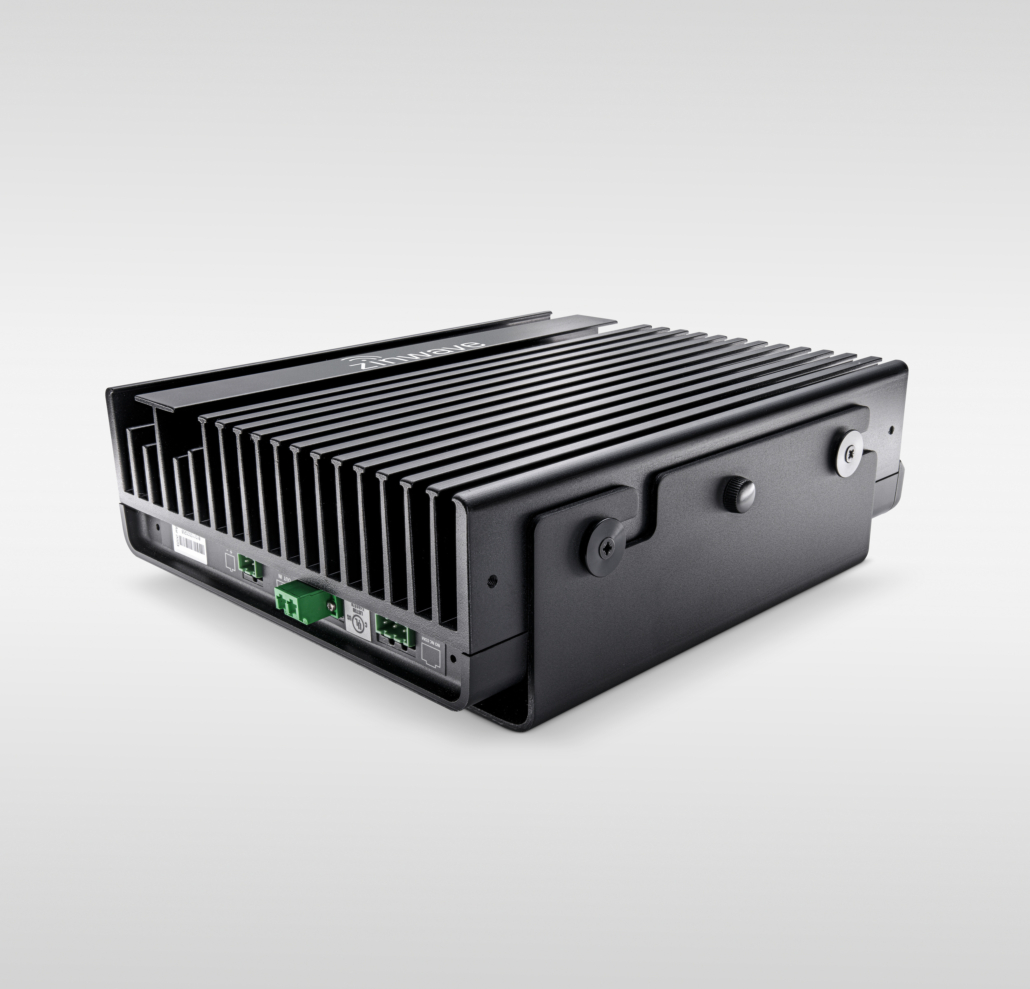

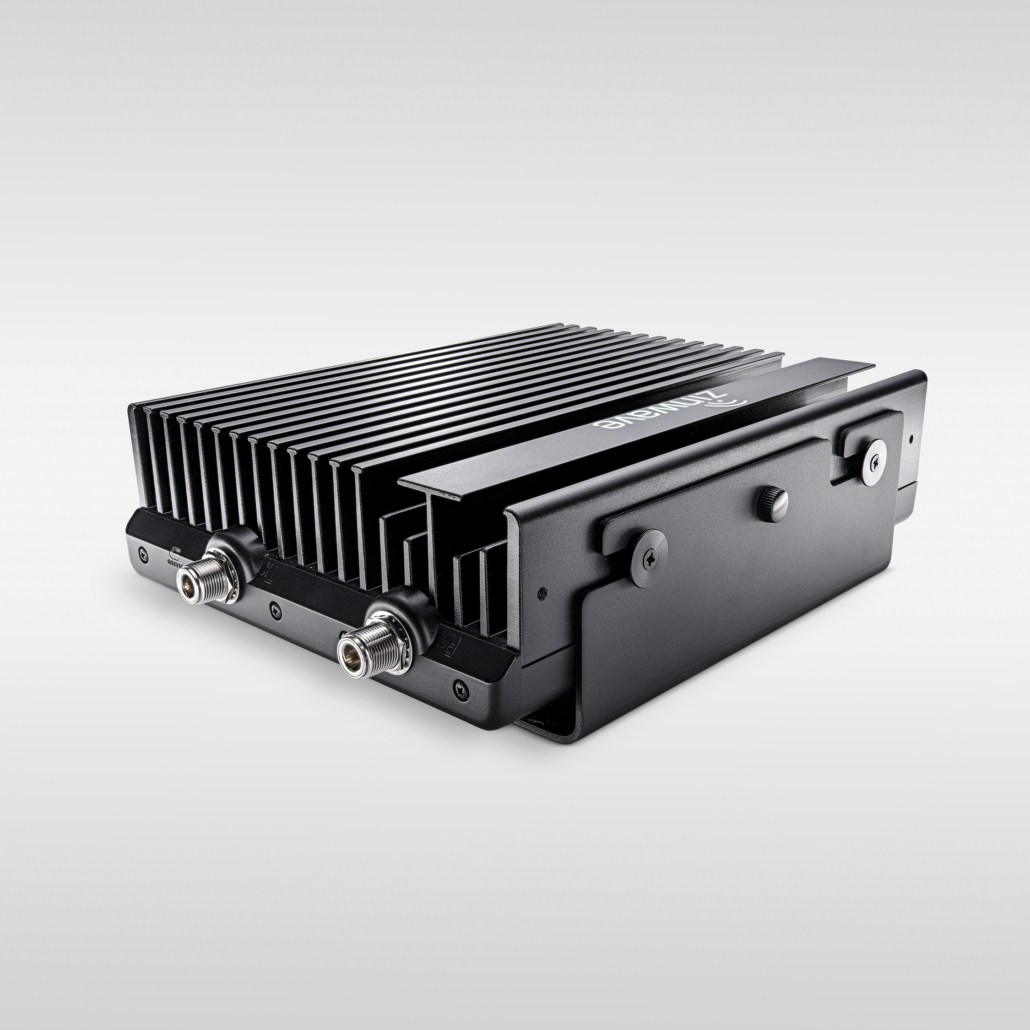

- SISO Remote Unit for Uniwave 8000 System
- Converts and Amplifies Uplink and Downlink Signals
- Up to 25 dBm Output Power
- Supports Frequencies 150 MHz to 5 GHz
- Lightweight and Easy to Install
UNIT SPECIFICATIONS:
| SKU | 308-0007-1 |
| POWER CONNECTIVITY | 48 V DC Power Input via PHOENIX 5.08 mm 2-Way Connector; AWG 12-24 |
| FIBER CONNECTIVITY | LC/APC Duplex |

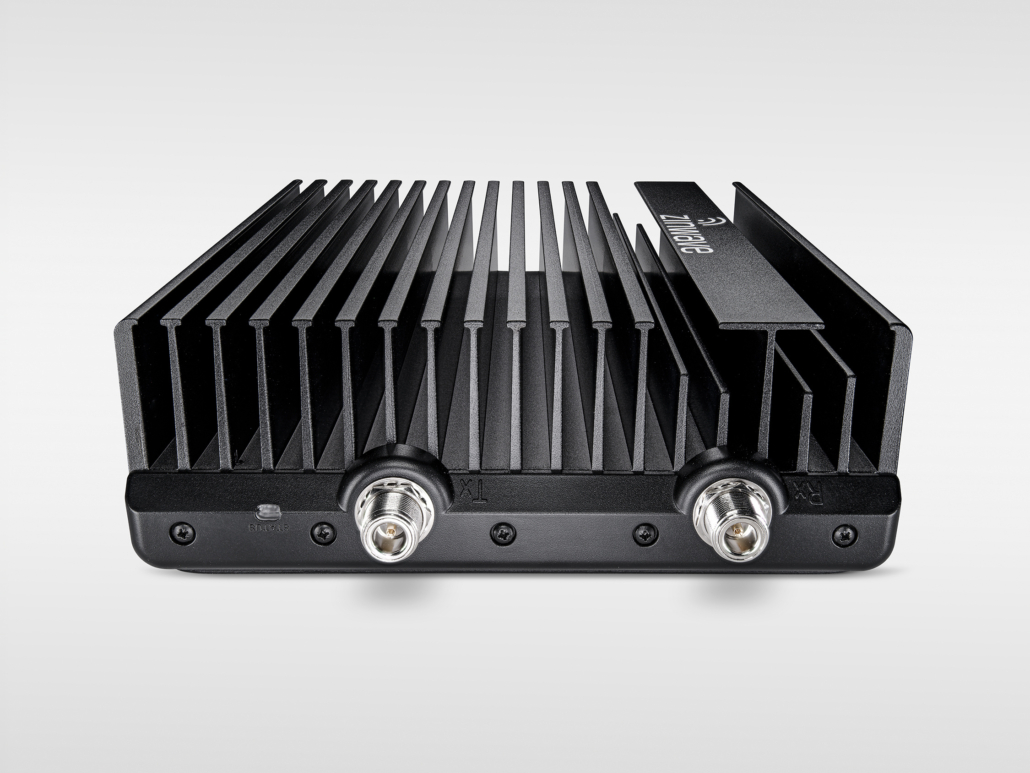

| ANTENNA CONNECTIVITY | Simplex N-Female Connectors (TX and RX) |
| OTHER CONNECTIVITY | Alarm Relay: PHOENIX 5.08 mm 3-Way |
| DIMENSIONS W / D / H (mm) | 1X1 – 8.9” (225) x 10.8” (275) x 3” (75) |
| WEIGHT | 1X1 – 8.8 lbs (4 kg) |
| ELECTRICAL DEPENDING ON CONFIGURATION | 48 V DC / 1A / 50W (130 BTU/HR) |
| OPERATING TEMP AMBIENT NON-CONDENSING | -5 C to +45 C |
UNIT PARAMETERS:
| TYPICAL | MAX | UNIT | NOTES | |
| NOISE FIGURE | 8 | dB | At Maximum RU Gain | |
| RF OUTPUT POWER | 150 -600MHz = 17/9 600-850MHz = 17/13 850-1575MHz = 24/17 1575-2700MHz = 24/21 3300-5000MHz = 24/22 |
dBm | 28/24 dBm Composite per RF Path FCC/CE Output Services Approved. |
|
| BROADBAND NOISE EMISSION | -114 | dBm/Hz | At Maximum Transmit Power | |
| SPURIOUS EMISSIONS | -36 / -30 | dBm | 9 kHz-1 GHz (100 kHz BW) 1 GHz-12 GHz (1 MHz BW) |
|
| REMOTE UNIT P1 dB | +33 | dBm | ||
| OIP3 | 47 | dBm | At Maximum RU Transmit Power | |
| OPTICAL TRANSMIT POWER | 8 | mW | Auto-Configured |
APPROVALS & LISTINGS:
| EUROPE | CE Marked for Radio Equipment Directive 2014/53/EU & ROHS Directives 2011/65/EC |
| USA FCC | FCC Certified |
| CANADA | Industry Canada Certified |
| SAFETY | IEC 60950-1; EN 60950-1; UL62368-1; UL2043 |
| LASER SAFETY | IEC 60825-1:2007 |
| ENVIRONMENT | IP20 Rated |
