Description

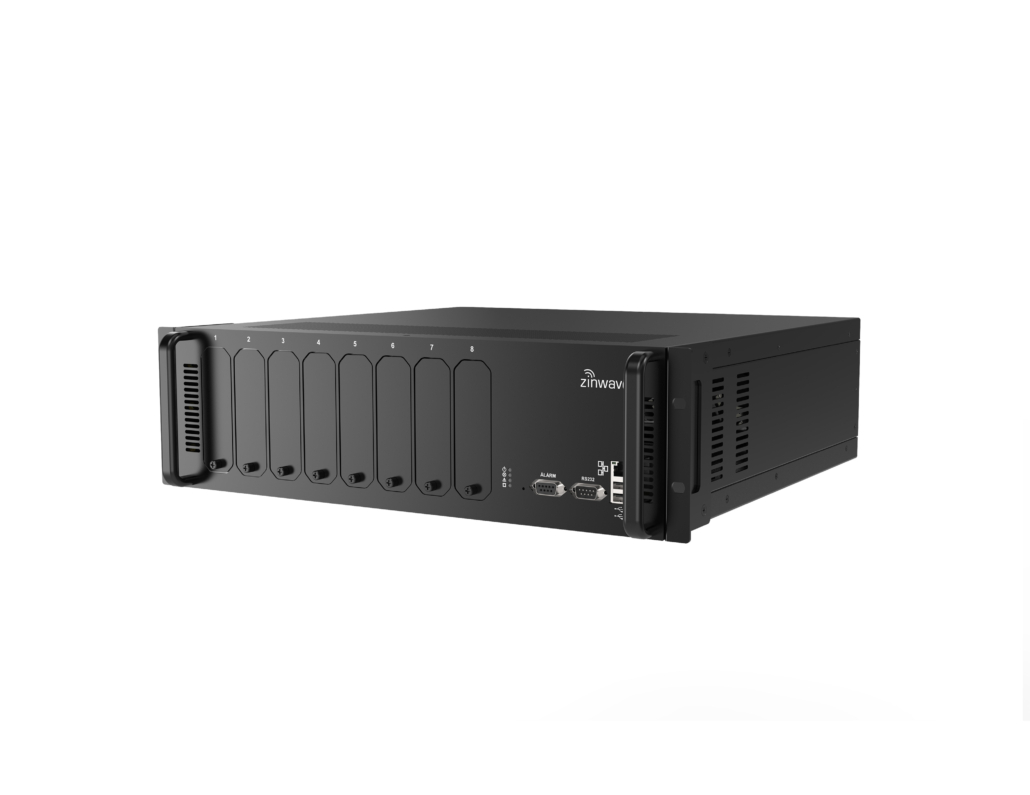

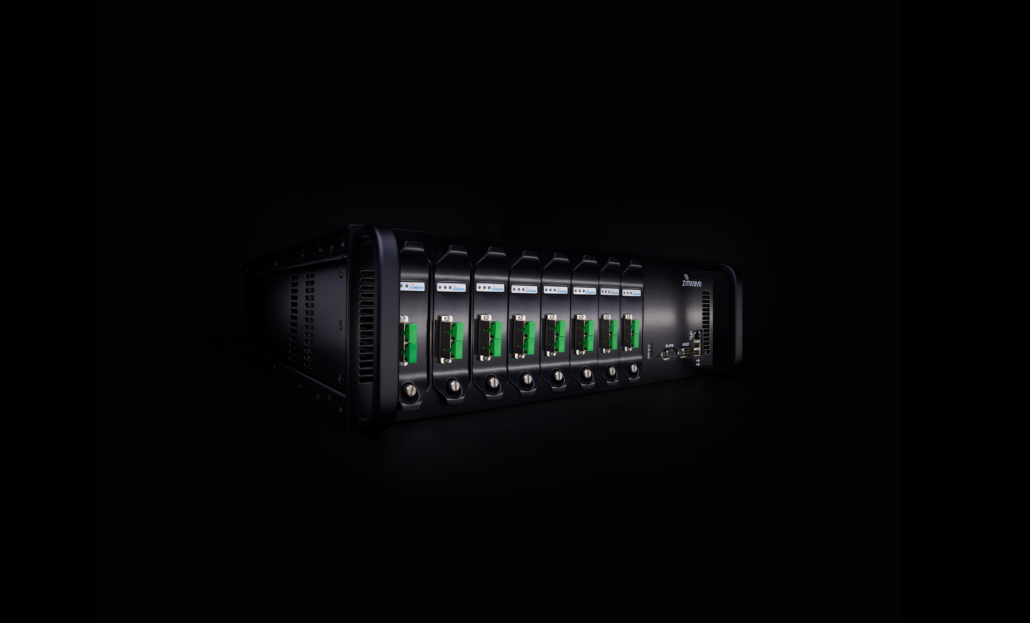

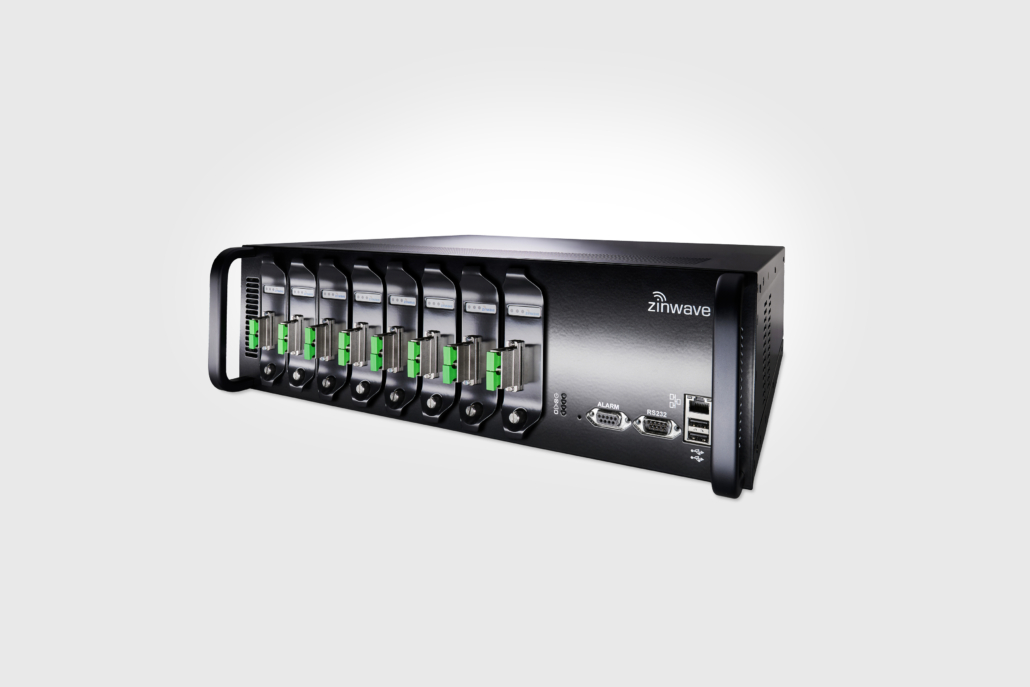

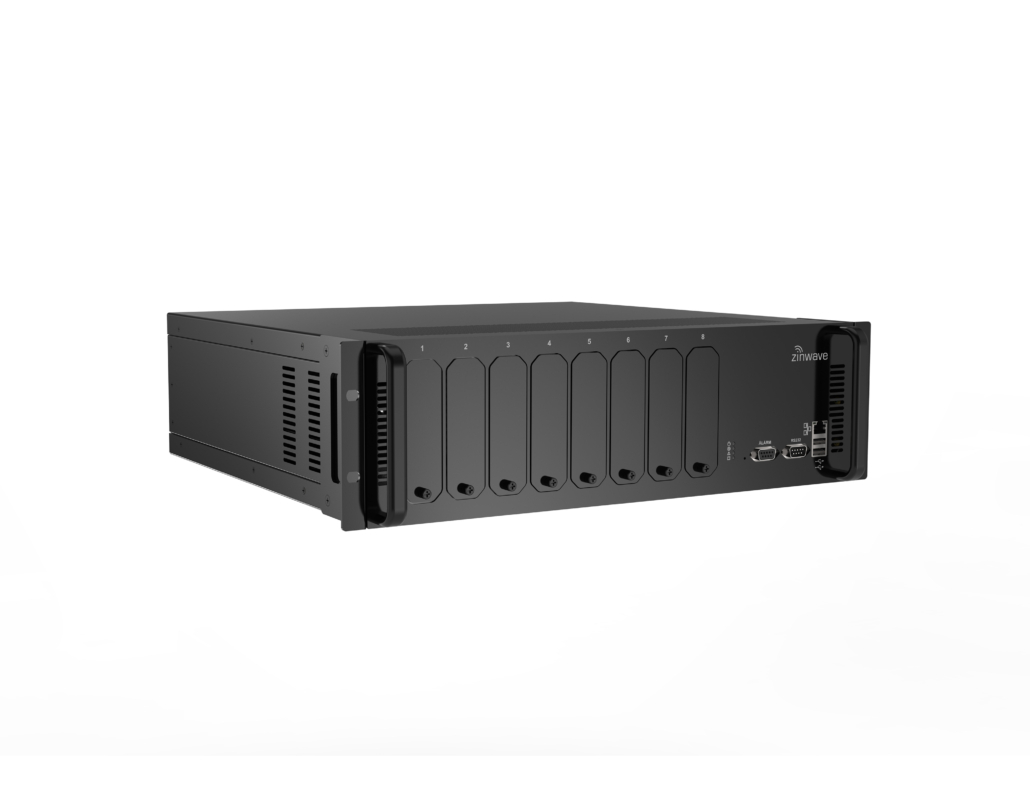

The Zinwave 5000 Primary Hub serves as the cornerstone of professional distributed antenna systems, delivering enterprise-grade connectivity solutions for commercial buildings and large facilities. This advanced hub provides essential connection capabilities to wireless operators and public safety sources while converting RF signals to optical format for fiber-based distribution throughout your facility.
Engineered for maximum flexibility, this system features a unique internal matrix that enables precise routing of supported wireless services within your deployment. This intelligent routing capability allows specific operators or frequencies to be distributed to the entire system or designated areas, depending on your coverage requirements and operational needs.
The modular architecture of the Zinwave 5000 Primary Hub supports scalable configurations ranging from simple point-to-point setups to complex multi-layer deployments. Whether you need a basic 1-1 configuration with a single Remote or a comprehensive 1-8-64 system supporting multiple Secondary Hubs and 64 Remotes, this hub adapts to your specific coverage demands.
Key Features
- Converts RF signals to optical format for fiber-based distribution
- Web GUI interface for comprehensive DAS configuration management
- GUI and SNMP capabilities for real-time status monitoring
- Integrated alarming system with relay outputs
- Unique internal matrix for flexible wireless service routing
- Modular design supporting up to four Service Modules
- Accommodates up to eight Optical Modules or Transport Modules
- Scalable from 1-1 to 1-8-64 system configurations
- Professional 3RU rack-mountable design
Specifications
| SKU: | 305-0001 |
| SYSTEM BANDWIDTH: | 150 MHz TO 2.7 GHz |
| GAIN CONTROL STEP RESOLUTION: | 1 dB |
| DIMENSIONS: | W / D / H (mm): 17.5″ (444) x 17.1″ (430) x 5.2″ (132) (3RU) |
| WEIGHT: | 33.3 lbs (15.10 Kg) Unpacked, Not Fully Populated |
| ELECTRICAL MAX LOADING: | AC: 110/230 V, 50/60 HZ /80 W (max), 0.7A, 274 BTU/HR |
| OPERATING TEMP AMBIENT NON-CONDENSING: | -5 TO +45 C (23 TO 113 ºF) |
| CONNECTIONS: | Ethernet (10/100 BASE-T), 2 Alarm Relay (DB-9F), 2 USB |
Zinwave 5000 Primary Hub – 305-0001 Spec Sheet
Ready to deploy a professional-grade DAS solution? The Zinwave 5000 Primary Hub provides the robust foundation your commercial facility needs for reliable wireless connectivity. Contact our connectivity specialists today to discuss your specific requirements and ensure optimal system performance.
