Description
About:

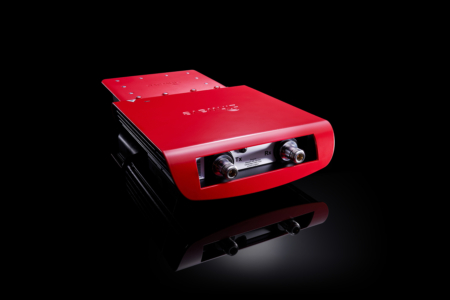

The Public Safety Remote supports all frequencies from 150 MHz to 2.7 GHz, including VHF (150 MHz), UHF (450 MHz), FirstNet Band 14 (700 MHz), 800 MHz, and all TETRA bands in any combination.
This Remote is NEMA 4 and IP66 rated when the add-on tray is attached. The tray provides three cable entry points for maximum flexibility across various fiber, power and alarm configurations. NFPA-compliant alarming connections are included with the unit.
The Public Safety Remote is powered with 48V DC from the Secondary Hub, or a Power Supply Unit (PSU) when connected directly to the Primary Hub, and is typically mounted above ceiling tiles or in out-of-sight locations as close as possible to the service area. It can be mounted in any orientation using the supplied mounting bracket.
Unit Specifications:
| POWER CONNECTIVITY | 48 V DC Power Input via PHOENIX 5.08 mm 2-Way Connector; AWG 12-24 |
| FIBER CONNECTIVITY | SC/APC Duplex |
| ANTENNA CONNECTIVITY | Simplex N-Female Connectors (TX & RX) |
| TRAY CONNECTIVITY | 3 Glands with M16, M32, M20 Screw Threads (Left to Right from Front), Blank Plates/Glands Provided, Cable Diameters Ranging Between 2 mm & 21 mm Can be Supported With Supplied Glands |
| OTHER CONNECTIVITY | Alarm Relay: PHOENIX 5.08 mm 3-Way with Normally Closed and Normally Open Connections |
| DIMENSIONS W / D / H (mm) | 8.1” (206) x 16.3” (415) x 2.2” (55) Measurements Include Supplied Mounting Bracket and IP66 Enclosure |
| WEIGHT | 6.6 lbs (3 Kg) |
| ELECTRICAL DEPENDING ON CONFIGURATION | 48 V DC / 0.5 A / 24 W (82 BTU/hr) Minimum Input Voltage 37 V |
| OPERATING TEMP AMBIENT NON-CONDENSING | -5 TO +50 °C (23 TO 122 °F) |
Approvals & Listings:
| EUROPE | CE Marked for Radio Equipment Directive 2014/53/EU & ROHS Directives 2011/65/EC |
| USA FCC | FCC Certified |
| CANADA | Industry Canada Certified |
| SAFETY | IEC 60950-1; EN 60950-1; UL60950-1, UL Listed-E486578 |
| LASER SAFETY | IEC 60825-1:2007 |
| ENVIRONMENTAL | IEC 60825-1:2007 IP66 |
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
